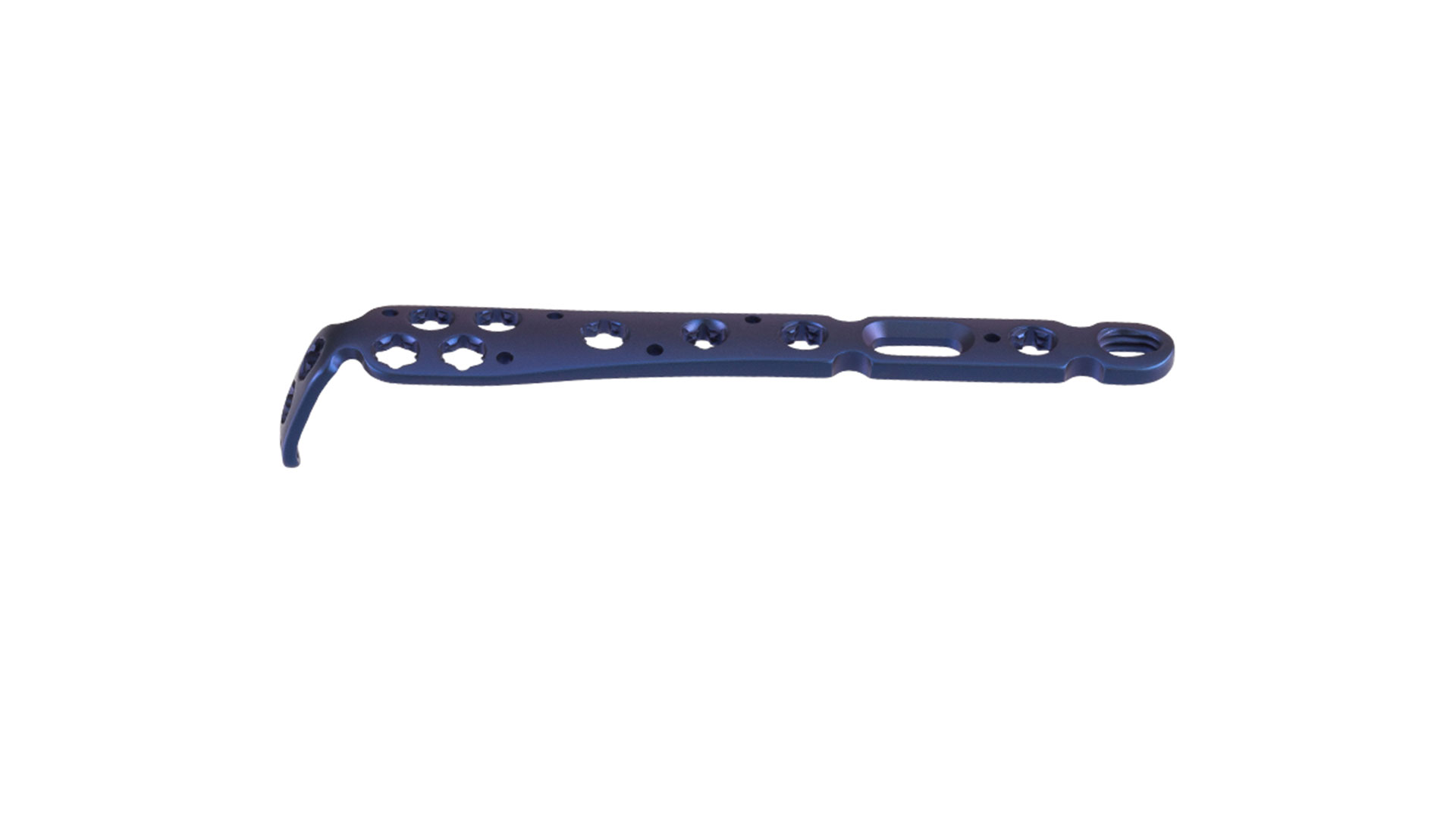

Olecranon plate 3.5 vas without spikes
Art. no. 5.08753.10
Advantages
- With eyelets at the head allow two braided sutures to be securely anchored to the plate through the triceps tendon with non-absorbable fibre-reinforced suture material
- Uniform plate versions for left and right
- Anatomical plate design
- Variable angle-stable combination holes for angle-stable cortical screws or standard cortical screws 3.5 mm in diameter
- Angle-stable compression hole for angle-stable cortical screws or standard cortical screws 3.5 mm in diameter
- Fixation holes for Kirschner wires
- Elongated hole for standard cortical screws Ø 3.5 mm
- Elongated hole facilitates alignment of the plate on the bone
- Two Ø 1.5 mm holes either for temporary fixation of the plate or to hold suture material, to fix smaller transosseous fragments
- Good adjustment options to the ulna with the existing reconstruction profile
Fractures
- Plate lengths: 76 mm / 99 mm / 151 mm
- Number of shaft holes: 8 / 10 / 14
- Titanium
Other designs
- No further designs available
