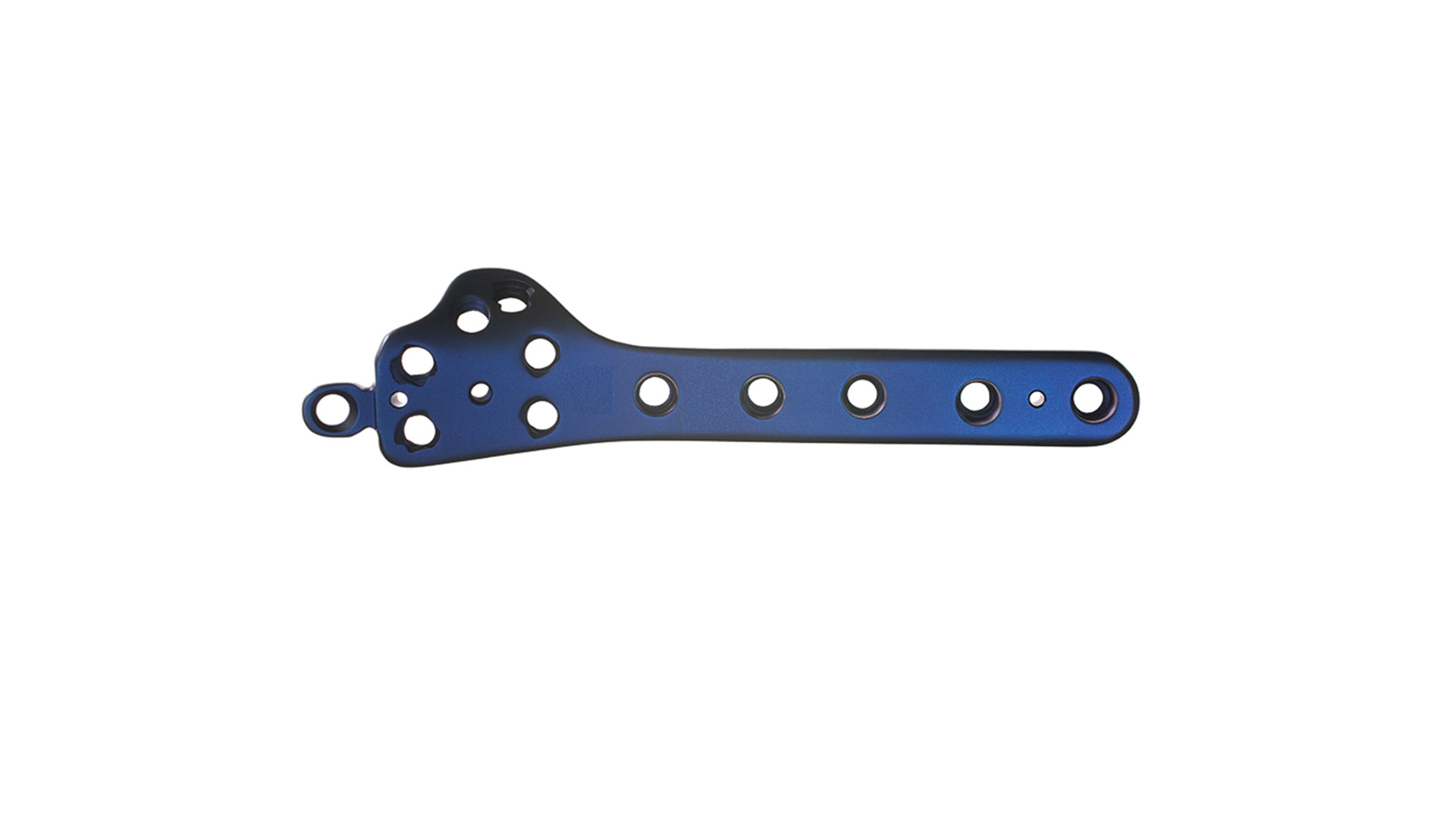

Distal tibial plate 3.5 as medial

Art. no. 5.73X2.XX

  • The shaped, anatomical plate form increases user confidence and reduces the operating time
  • Use in articular and extra-articular distal tibial fractures
  • The sole use of small fragment dimensions reduces storage costs and makes the sets easier to process
  • The angle-stable screw path in the metaphyseal tibial joint block captures all skin fragments of the epiphysis/metaphysis
  • The ventral plate arm ensures high osteosynthesis stability of the fixed dorsal bone fragments
  • Angle-stable screw fixation in the metaphyseal plate section
  • Conventional or angle-stable screw placement in the diaphyseal plate section
  • Longer plates to treat double segmental fractures available on request
  • Anatomically adapted plate shape
  • Plate versions for left and right
  • Variable angle-stable holes for Ø 3.5 mm angle-stable cortical screws
  • Fixation holes for Kirschner wires
  • Titanium
  • Width 14 mm
  • 3 – 15 holes
  • Lengths 76 mm – 268 mm
Other designs
    No further designs available.
